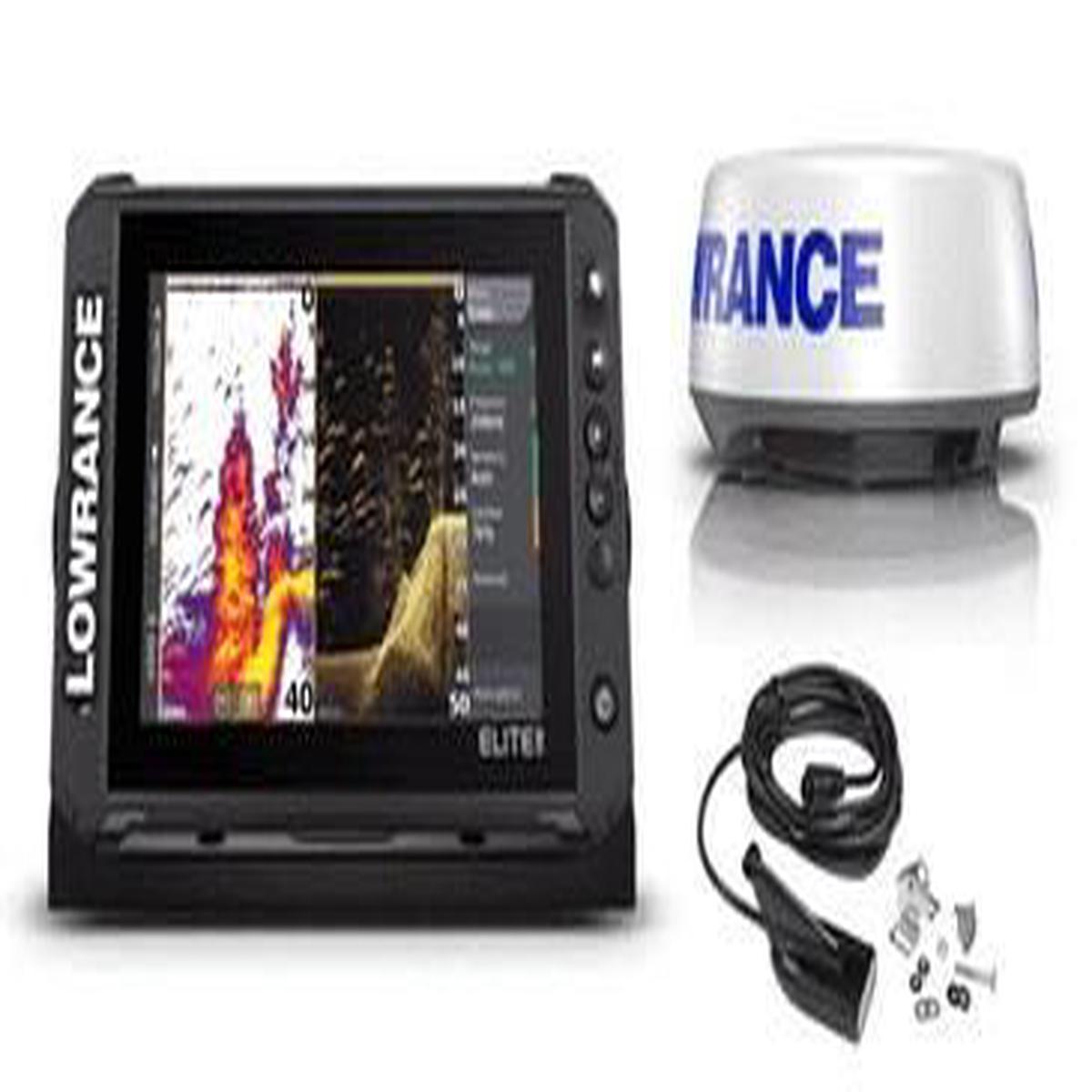

Lowrance Elite FS 9″ Halo 20 Bundle.
Model: 000-15946-001
- ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget and Active Imaging 3-in-1 Sonar
- Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
- High Resolution Multi-touch screen
- Preloaded with C-MAP Contour + charts (AMER, APAC)
- NMEA 2000: Support and control NMEA 2000 devices
- Halo Radar: Drive Lowrance radar domes directly
- Total Control: Full touchscreen control of Power Pole anchors and Ghost Trolling Motor
Specifications
| Sonar | |
| Power Output | Max 1 kW RMS |
| Sonar Connections | One connector for Active Imaging SideScan, DownScan and CHIRP |
| Active Imaging 3-in-1 | DownScan Imaging at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455kHz: Max 300 ft./91 m to each side |
| CHIRP Sonar | High Range (160-240kHz)/200 kHz: 1000 ft / 305 m |
| CHIRP Sonar | Med Range (60-100kHz)/83 kHz: 1000 ft / 305 m |
| CHIRP Sonar | Low Range (40-60kHz)/50 kHz: 3000 ft / 900 m |
| Available Sonar Frequencies | Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging |
| Depth Alarm | Yes |
| Shallow Alarm | Yes |
| Temperature Readings | Yes |
| Transducer Type | Single 9-pin Connection; Multiple Transducer Selections from Lowrance and Airmar |
| Environmental | |
| Operating temperature range | -15C to +55C (5F to 131F) |
| Storage temperature | -20C to +60C (4F to 140F) |
| Waterproof rating | IPX6 and IPX7 |
What’s in the Box:
- LOWRANCE HALO20 Radar
- H DI Skimmer M/H 455/800 xSonic 9-pin – Black – 6m Cable
- Suncover
- Bracket and Knobs
- Lowrance Power Cable
- Fuse and Fuse Holder
- CNR CLIP KIT: ELITE-7+9 FS
