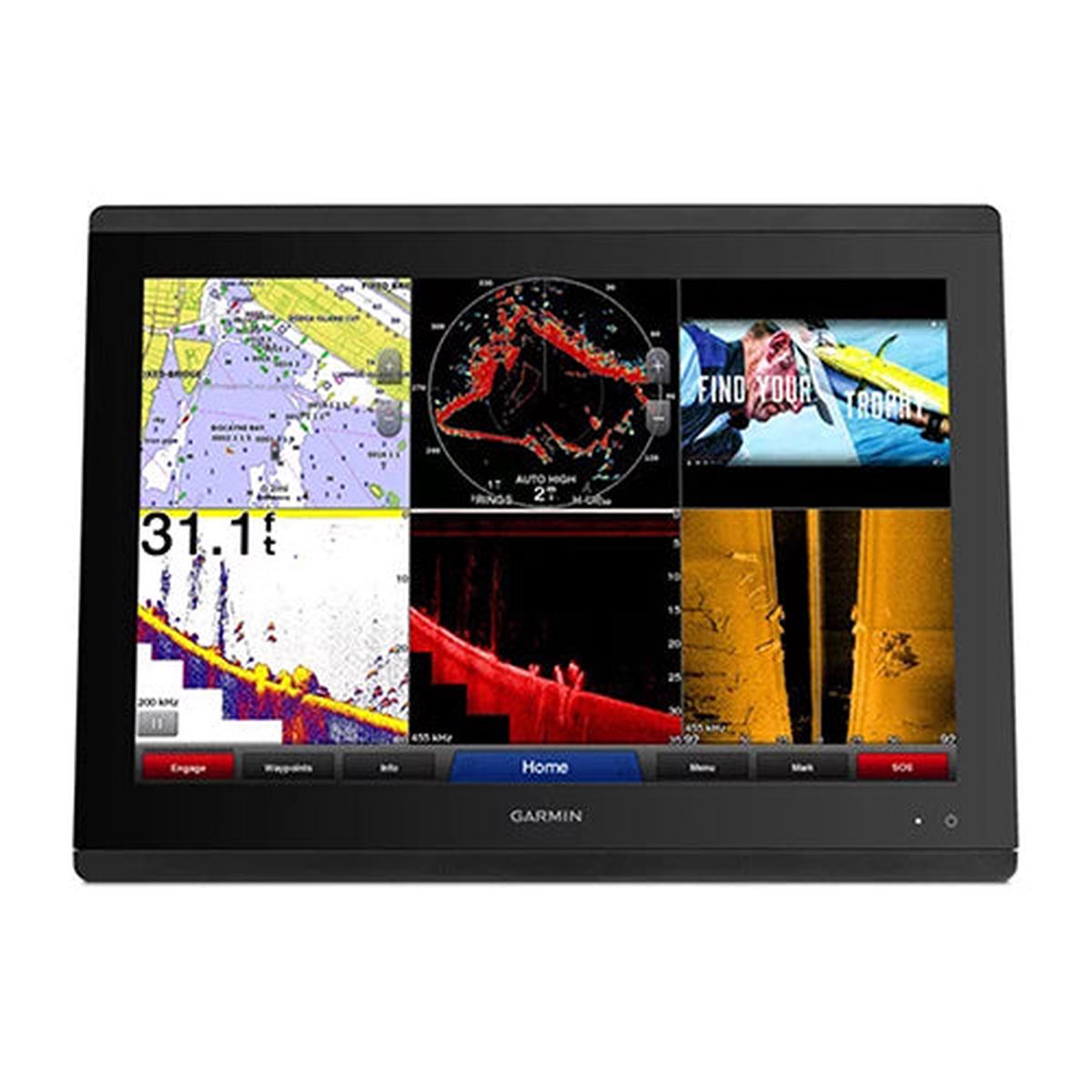

GPSMAP 8617 large-format multifunction display features a 17-inch full HD screen with touch control. Sunlight-readable, anti-glare display is exceptionally easy to view and also includes auto-dimming feature for use in low light or at night. New maximum glass design enables you to experience a beautifully powerful, completely networked helm at your fingertips. In-plane switching (IPS) LCD display an industry first for this class provides consistent, accurate colors from all viewing angles. It also provides standard USB touch output for use as a touchscreen monitor for Windows and Mac operating systems. Install multiple displays with the industrys lowest flush-mount profile or flat mount them edge-to-edge to create a sleek glass helm look. Quick, 1-touch access to the information you need makes boating easier.

Features:

– Premium 17″ full HD display with pinch-to-zoom touchscreen control has highest resolution on the marine market
– Configure the full system to provide 1-touch setting access for docking, cruising, fishing, anchoring and more
– Beautiful glass helm look with ability to install multiple displays either flush or flat mounted edge-to-edge
– High-performance processor delivers our fastest map drawing ever and enhanced video processing
– Provides a superior user experience across your entire network for radar, sonar and multimedia
– Preloaded BlueChart g2 Charts
– Preloaded LakeV HD Maps
– Full System Integration
– New High-performance Processor
– Garmin Marine Network and NMEA 2000 Network Support
– View Multiple Sonar Sources Simultaneously
– Add Array or Dome Radar
– Network Sharing
– Heading, Position Refreshed 10 Times per Second
– SailAssist Features
– Create Your Own HD Maps
– Upgrade to Garmin’s Best Maps on the Water
– FUSION-Link Entertainment System
– Built-in Connectivity
– The Ultimate Connected Boating App
– Multiple Depth Range Shading
– Multiple Depth Range Shading
– Axis and FLIR Camera Support

Package Includes:

– GPSMAP 8617
– Trim Piece Snap Covers
– GPS 19x NMEA 2000 (with Pole Mount, Flush Mount and Under Deck Mount Adapters)
– Protective Cover
– Flush Mount Hardware
– Power Cable
– NMEA 2000 2 m Back Bone/Drop Cable
– NMEA 2000 6 m Back Bone Cable
– NMEA 2000 Power Cable
– NMEA 2000 T-Connector & Terminator Kit
– Documentation

Specifications:

General:

– Dimensions: 16 1/2″ x 12.10″ x 2.80″
– Display Size: 14.40″ x 9.10″
– Display Resolution: 1920 x 1200 Pixels
– Display Type: Touch-Screen IPS Display (Anti-Glare Finish)
– Weight: 11.48 lbs
– Water Rating: IPX7
– Antenna: External Only
– Mounting Options: Flush or Flat
– Receiver: 10 Hz High-Sensitivity
– Garmin Marine Network Ports: 4

Power Consumption:

– Maximum Power Usage at 10 Vdc: 40 W
– Typical Current Draw at 12 Vdc: 2.8 A
– Maximum Current Draw at 12 Vdc: 3.5 A

Maps and Memory:

– Preloaded Maps: BlueChart g2 (US and Western Canada Coastal Maps) and LakeV HD (Inland Maps)
– Accepts Data Cards: 2 SD Cards (with Garmin SD Card Reader Accessory)
– Waypoints: 5,000
– Routes: 100 (250 Waypoints Each)
– Track Log50,000 Points; 50 Saved Tracks, with 5000 Points Each

Outdoor Recreation Features:

– Tide tTbles

Chartplotter Features:

– Garmin Radar Compatible
– Garmin Sonar Compatible: Yes
– Garmin SmartMode Compatible (Customizable Monitor Pre-Sets)
– Supports AIS (Tracks Target Ships Position)
– Supports DSC (Displays Position Data from DSC-Capable VHF Radio)
– Supports FUSION-Link Compatible Radios
– GSD Black Box Sonar Support
– GCV Black Box Sonar Support
– ActiveCaptain Compatible: Yes
– Garmin Helm Compatible: Yes
– GRID (Garmin Remote Input Device) Compatible

Sonar Features and Specifications:

– Dual Frequency (50/200 kHz) Sonar Capable: Yes (with External Black Box, Sold Separately)
– Dual Beam (77/200 kHz) Sonar Capable: Yes (with External Black Box, Sold Separately)
– CHIRP Sonar Technology: Yes (with External Black Box, Sold Separately)
– ClearV: Yes (with GCV Black Box, Sold Separately)
– SideV: Yes (with GCV Black Box, Sold Separately)

Connections:

– NMEA 2000 Compatible
– NMEA 0183 Input Ports: 4
– NMEA 0183 Output Ports: 2
– Video Input Ports: 1 BNC Composite, and 1 HDMI (HDCP Compliant)
– Video Output Ports: 1 HDMI
– Wireless connectivity: Yes
