THE CHOICE IS YOURS

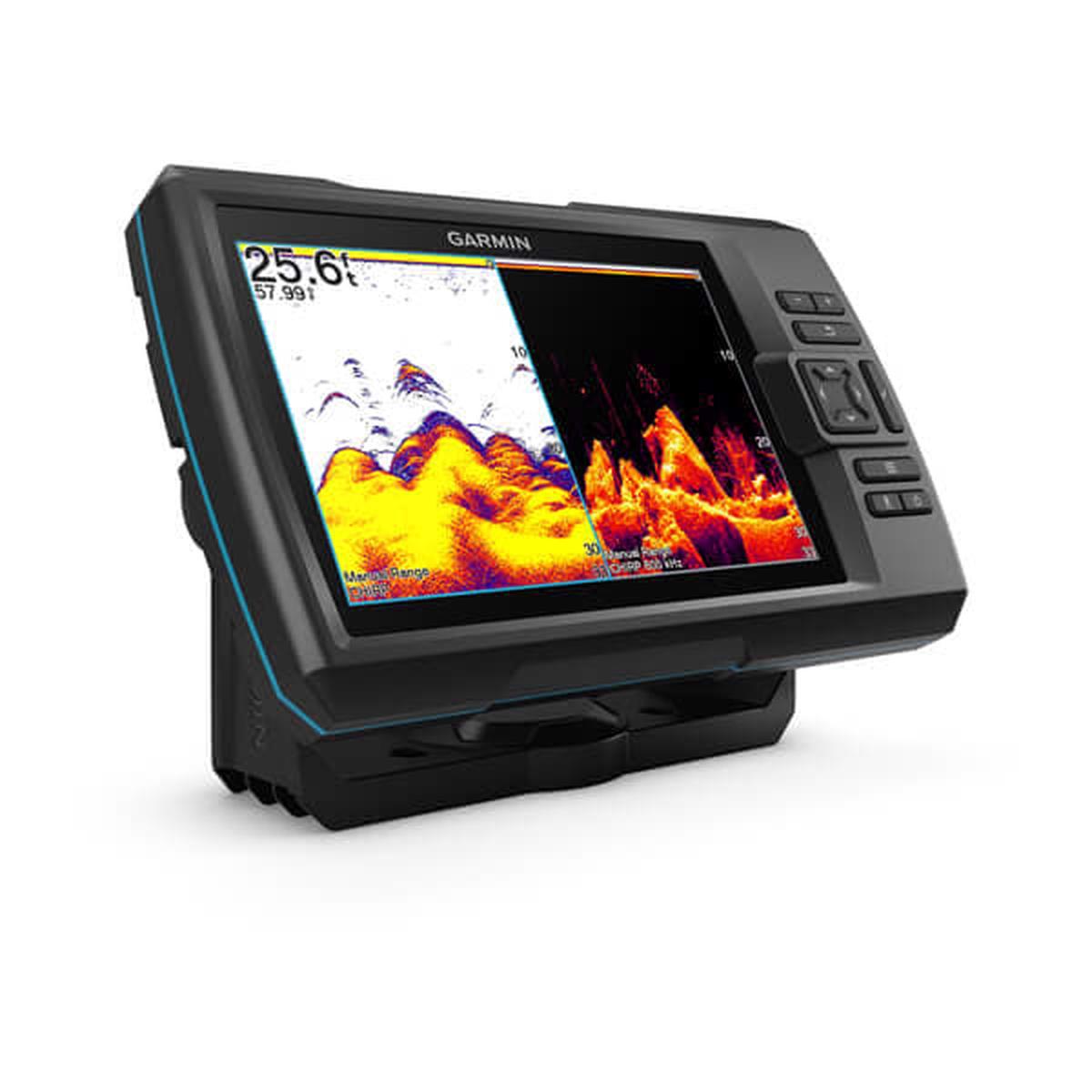

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 7cv fishfinder with GT20-TMtransducer.

The sonar colour you pick says a lot about your fishing style. Good thing there are 7 new vivid options.

What a view. Use the included transducer to get CHIRP traditional and ClearV sonars.

Never lose a hot spot again. Use waypoint marking to find your way back.

Whats under the waters surface looks pretty good as 1-foot contours, just saying.

Wi-Ficonnection1on land opens up a world of possibilities on the water.

A new way to see whats under the water.

CLEAR, COLOURFUL SONAR

Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 7-inch fishfinder.

BUILT-IN SONAR

Use the includedGT20transducer to get Garmin CHIRP traditional sonar and CHIRP ClearV scanning sonar.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

Plan and create routes and view your boats speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 7cv fishfinder, you can store up to 2 million acres of maps with 1-foot contours.

INCLUDED HARDWARE

The STRIKER Vivid 7cv includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

WI-FI CONNECTIVITY

Connect to theActiveCaptainapp1to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin QuickdrawCommunity.

General
DIMENSION	9.3 x 5.5 x 2.3 (23.5 x 14.0 x 5.8 cm)
DISPLAY RESOLUTION	800 x 480 pixels
DISPLAY TYPE	WVGA colour
WEIGHT	1.7 lbs (0.8 kg)
WATER RATING	IPX7
TRANSMIT POWER	500 W (RMS)

Sonar features & specifications
DUAL FREQUENCY SONAR
DUAL BEAM SONAR
FREQUENCY	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearV: 260/455/800 kHz
BOTTOM LOCK
WATER TEMPERATURE LOG

Fishfinder features
SPLIT-SCREEN ZOOM
ULTRASCROLL (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
FISH SYMBOL ID
AUTOGAIN TECHNOLOGY (MINIMISES CLUTTER, MAXIMISES TARGETS)
ADJUSTABLE DEPTH LINE
A-SCOPE
WATER TEMPERATURE SENSOR INCLUDED

Additional
ADDITIONAL	One 4-pin transducer port One 4-pin SideV transducer port Wireless Connectivity: Yes Quickdraw Contours Integrated GPS Mark Waypoints Course over Ground (COG) Current draw @ 12V: 0.67A
