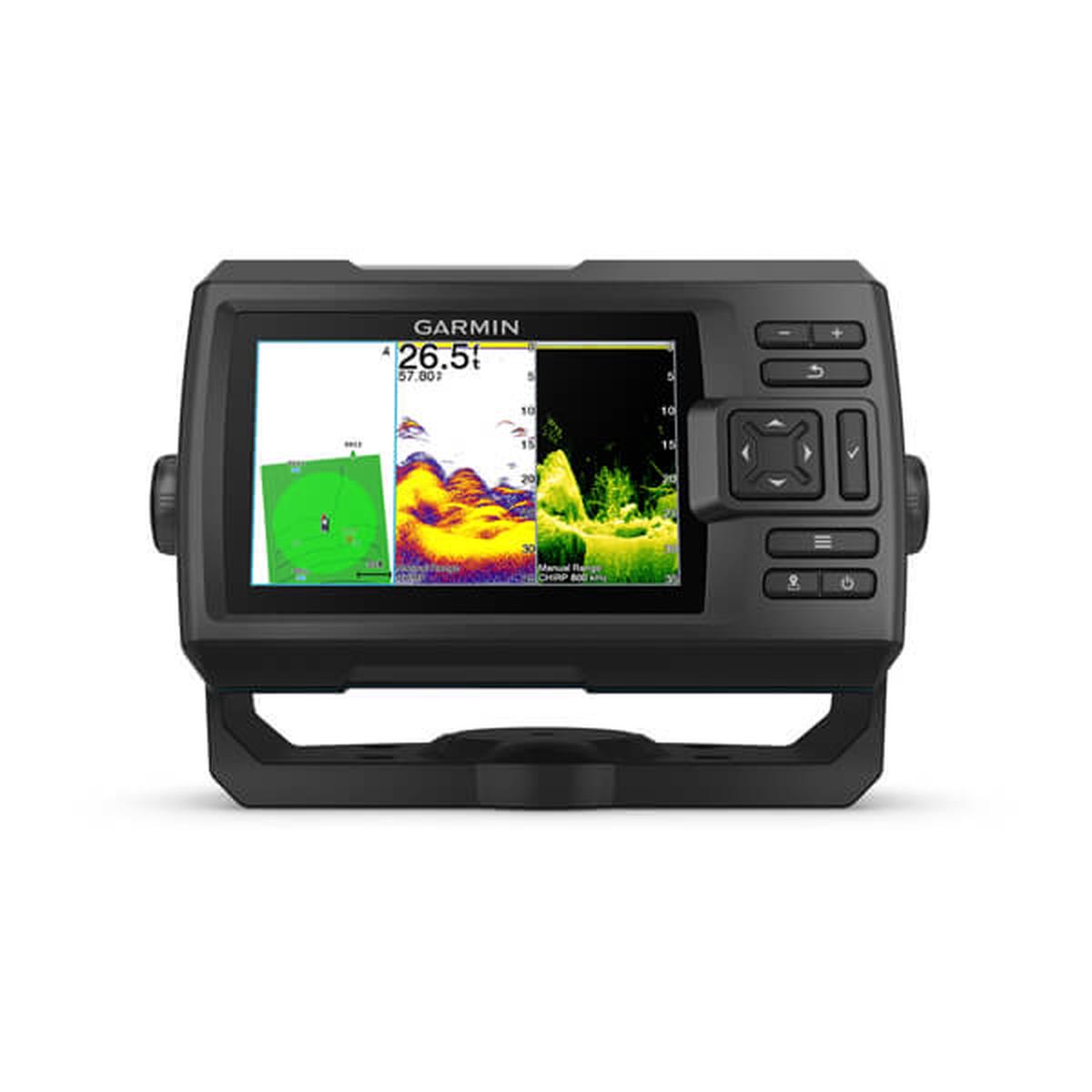

Garmin Striker Vivid 5CV Sonar GPS CHIRP

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 5cv fishfinder and GT20 transducer.

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 5cv fishfinder with the transducer.

The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.

What a view. Use the included transducer to get CHIRP traditional and ClearV sonars.

Never lose a hot spot again. Use waypoint marking to find your way back.

Whats under the waters surface looks pretty good as 1-foot contours, just saying.

Garmin Striker Vivid 5CV Plus Sonar GPS CHIRP Specifications

General
PHYSICAL DIMENSIONS	7.4 x 4.5 x 2.1 (18.8 x 11.6 x 5.4 cm)
DISPLAY RESOLUTION	800 x 480 pixels
DISPLAY TYPE	WVGA colour
WEIGHT	1.0 lb(0.5 kg)
WATER RATING	IPX7
TRANSMIT POWER	500 W (RMS)

Sonar features & specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
FREQUENCIES SUPPORTED	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearV: 260/455/800 kHz
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG AND GRAPH

Fishfinder features
SPLIT-SCREEN ZOOM
ULTRASCROLL (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
AUTOGAIN TECHNOLOGY (MINIMISES CLUTTER, MAXIMISES TARGETS)
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
WATER TEMPERATURE SENSOR INCLUDED

Additional
ADDITIONAL	One 4-pin transducer port Quickdraw Contours Integrated GPS Mark Waypoints Course over Ground (COG) Current draw @ 12V: 0.40A

In Box

• STRIKER Vivid 5cv
• GT20-TM transducer
• Power/data cable
• Tilt/swivel mount
• Hardware
• Garmin bumper sticker
• Documentation

CLEAR, COLOURFUL SONAR

Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 5? fishfinder.

BUILT-IN SONAR

Use the includedGT20transducer to get Garmin CHIRP traditional sonar and CHIRP ClearV scanning sonar.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

Plan and create routes and view your boats speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 5cv fishfinder, you can store up to 2 million acres of maps with 1 contours1.

INCLUDED HARDWARE

The STRIKER Vivid 5cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
