They advise “Talk to a local” when it comes to increasing your catch of fish. You’ll know the sea even better than they do with the ECHOMAP UHD2 chartplotter, which delivers our best-in-class sonar and mapping together with a premium touchscreen display with keyed-assist. They say locals know best. But anyone who says that hasnt fished with the ECHOMAP UHD2 7″chartplotters with clear, crisp sonar and mapping.

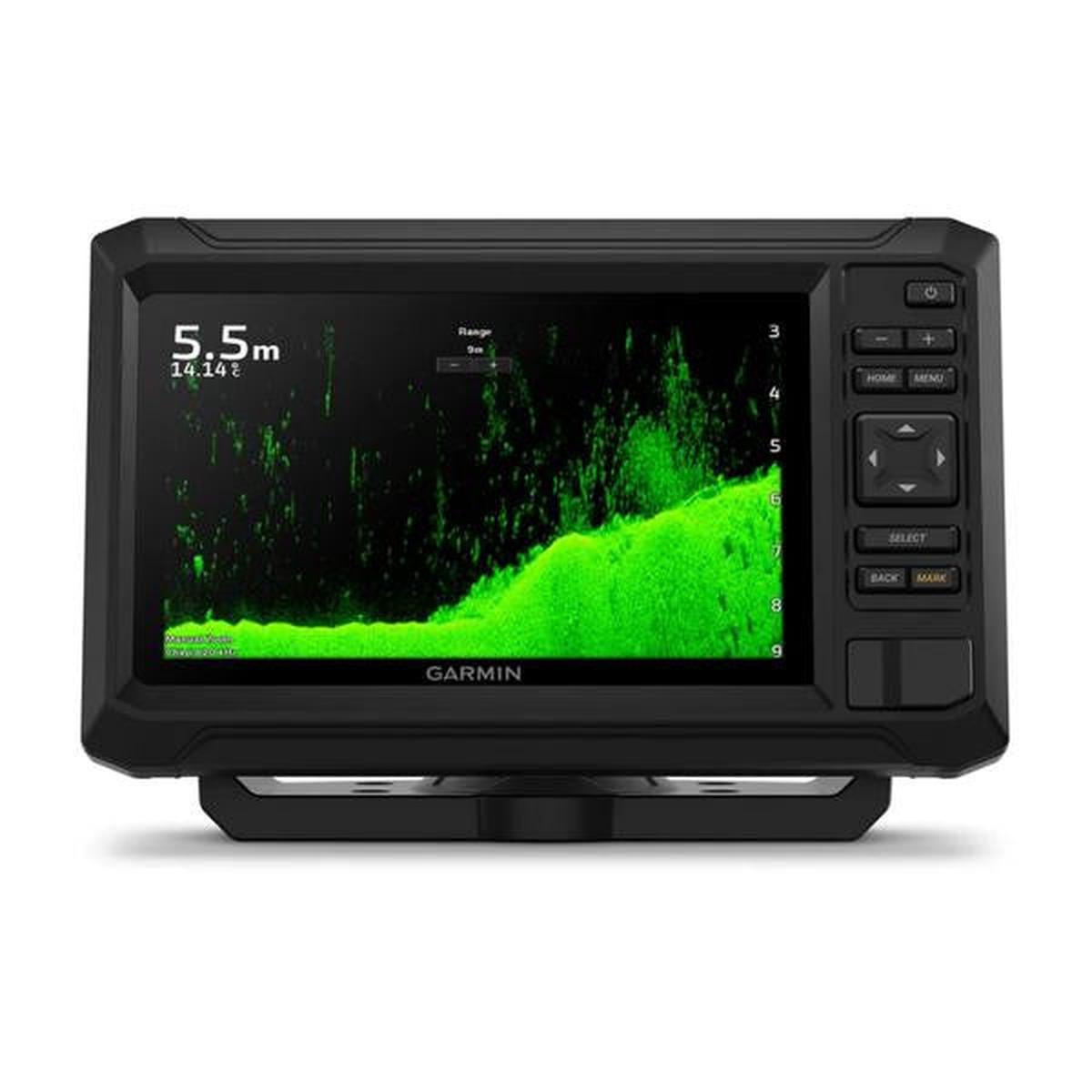

Garmin Echomap UHD2 75CV with GT20-TM Transducer Navionics Fishfinder Sounder Features

Garmin Echomap 75CV Sounder with Transducer and Navionics

– ECHOMAP UHD2 75cv
– GT20-TM transducer
– Power data cable
– Tilt/swivel mount
– Flush mount
– Documentation

Garmin Echomap UHD2 75CV with GT20-TM Transducer Navionics Fishfinder Sounder Specifications

– Model: 010-02596-70
– Physical dimensions: 9.1 x 5.6 x 2.6 (23.2 x 14.3 x 6.7 cm)
– Weight: 1.5 lbs (0.7 kg)
– Water rating:IPX7
– Display type:WVGA, TN
– Display resolution: 800 x 480 pixels

Maps and Memory

– Accepts data cards:1 microSD card; 32 GB maximum card size
– Waypoints:5,000
– Routes:100
– Track log:50,000 points; 50 saved tracks

Chartplotter Features

– Garmin Sonar compatible:Yes
– Supports AIS (tracks target ships position)Yes
– Supports DSC (displays position data from DSC-capable VHF radio)Yes
– Frequencies supported:CHIRP (low, mid, high) / Traditional: 50/77/83/200 kHz / ClearV: 260/455/800/1000/1200 kHz
– Transmit power:500W
– CHIRP sonar technology:Yes (Built-in)
– ClearV:Yes with CHIRP (built-in)

Connections

– 4-pin Transducer ports: 1
– Garmin Wi-Fi- Network (local connection): Yes
