They say locals know best. But anyone who says that hasnt fished with the ECHOMAP UHD2 5 and 7 chartplotters with clear, crisp sonar and mapping.The bright 5 keyed display is made for convenience. Get double the viewswith Garmin CHIRP traditional and ClearV scanning sonars.

Whats under the water looks even better with high-contrast vivid colour palettes.Wi-Fi connectivitybetween compatible chartplotters makes it easy to share info.

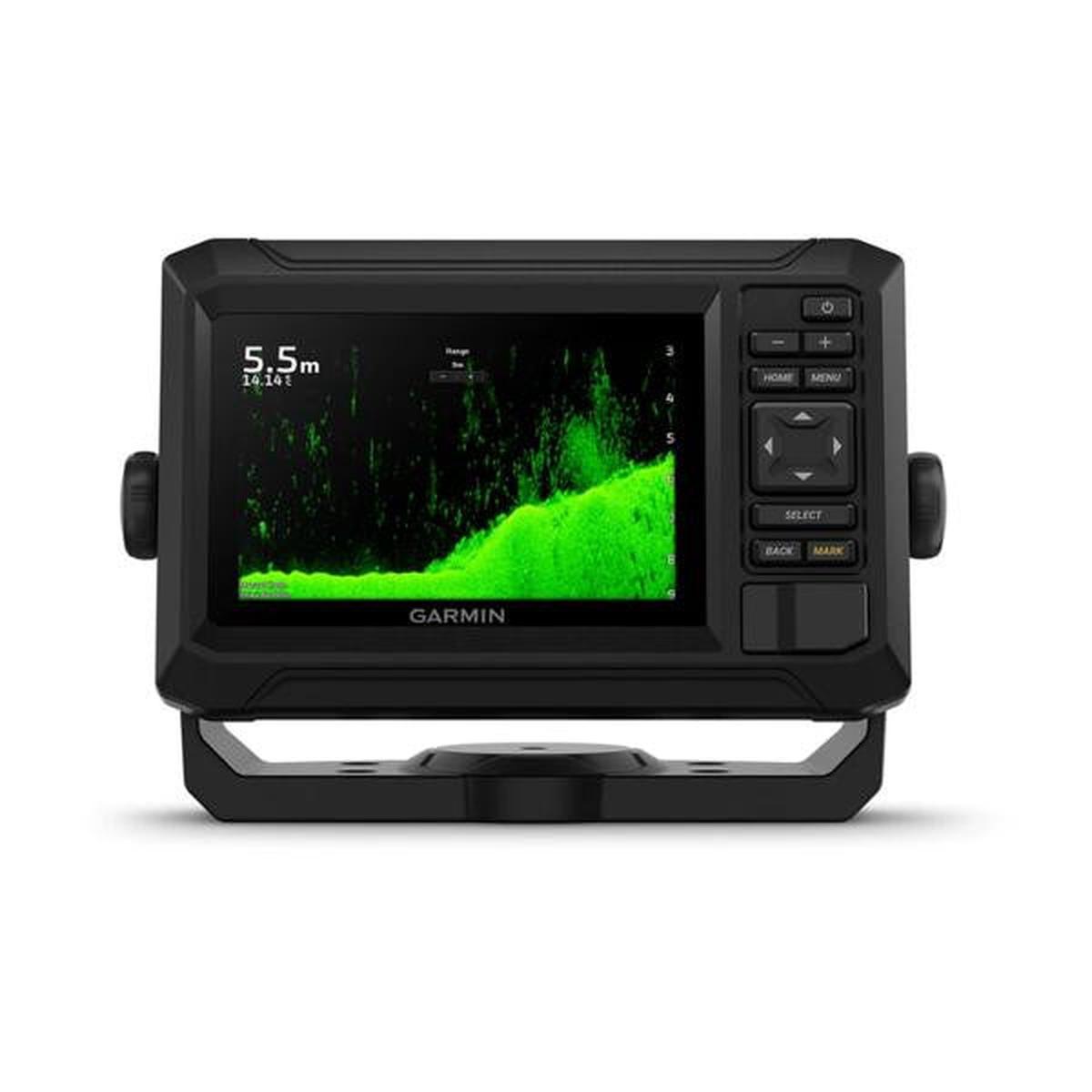

Garmin Echomap UHD2 55CV AUS NZ Fishfinder Sounder Features

Garmin Echomap 55CV Fishfinder Sounder

– ECHOMAP UHD2
– Power/data cable
– Tilt mount
– Flush mount
– Hardware
– Documentation

Garmin Echomap UHD2 55CV AUS NZ Fishfinder Sounder Specifications

– Model: 010-02592-20
– Physical dimensions: 7.4 x 4.8 x 2.4 (18.8 x 12.2 x 6.2 cm)
– Weight:1.1 lbs (0.5 kg)
– Water rating:IPX7
– Display type:WVGA, IPS
– Display resolution: 800 x 480 pixels
– Wireless connectivity: Yes

Maps and Memory

– Accepts data cards:1 microSD card; 32 GB maximum card size
– Waypoints:5,000
– Routes:100
– Track log:50,000 points; 50 saved tracks

Chartplotter Features

– Garmin Sonar compatible:Yes
– Frequencies supported:CHIRP (low, mid, high) / Traditional: 70/83/83/200 kHz / ClearV: 260/455/800/1000/1200 kHz
– Transmit power:500 W

Connections

– Transducer pin numbers:4
