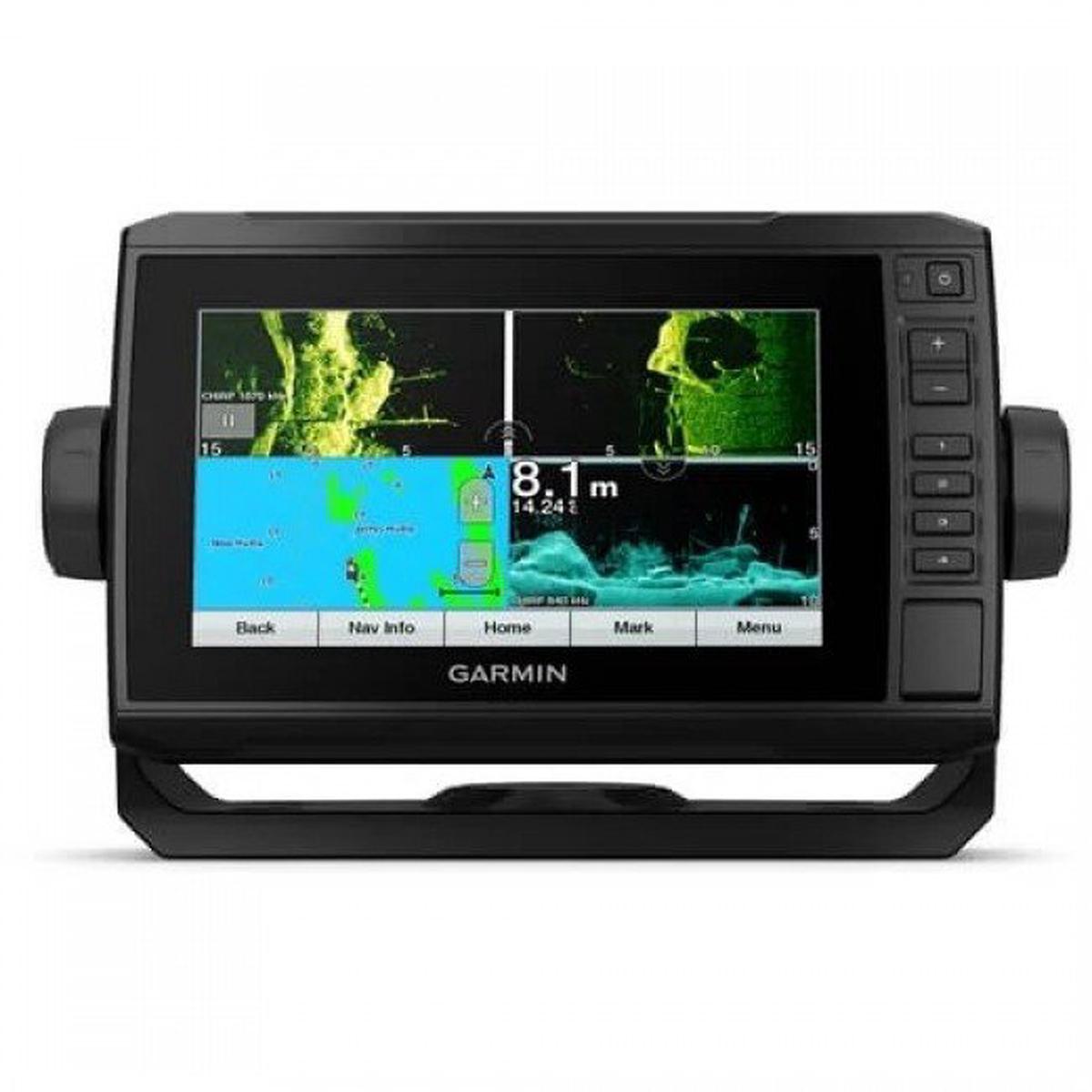

Garmin EchoMap 75sv UHD Combo features Ultra High-Definition ClearVu Sonar, SideVu imaging as well as CHIRP traditional Sonar to make your fishing easier, with an all-round view beneath the water.

Features

– 7″ WVGA touch-screen display; 800 x 400 resolution
– IPX7 waterproof protection
– Ultra High-DefinitionClearVusonar
– CHIRP traditional sonar
– Built-in Wi-Fi to connect to ActiveCaptain appfor access to OneChart
– Power Consumption: 15w
– Transmit Power: 500wrms/ 4000w (peak to peak)
– Internal 5Hz GPS/GLONASSRecieverrefreshes position andHeading10 times/second, resulting in a fluid and constant on screen location for navigating and making waypoints
– 100 routes and 50,000 waypoints
– Quickdraw Contours allows for easy mapping of your own routes and regular points of interest
– NMEA 2000 – connect to autopilots, digital switching, weather, Fusion-Link audio,VHF,AISand more
– Garmin Panoptix Port
– 1 x microSD card (32GB max card size)
– Preloaded withBluechartg3 mapping

Specifications

– Model: 010-02528-20
– Dimensions: 250mmW x 139mmH x 51mmD
– Screen Size: 7″
– Display Resolution: 800W x 400V pixels
– Wattage: 15W
– NMEA0183 Compatibility: Yes
– NMEA2000 Compatibility: Yes
– Mounting Options:Bracket Mount and Flush Mount
– WiFi Connectivity: Built-in
– Chirp Sonar: Yes
– Operating Frequency: 50KHz, 77KHz, ClearVu CHIRP 260/455kHz, SideVu CHIRP 455/800kHz, 200KHz, CHIRP 150-240KHz
– Side Imaging (Transducer Dependant): Yes
– Output Power: RMS 500W
